JSON1.6 OCPP AC EV Charging Stations 7kW 22kw Home Charger

Brand Name : ANS

Model Number : ANS-T2AC22kW

Certification : TUV/CE/UL/RoHS/REACH

Place of Origin : China

MOQ : 1pcs

Price : USD300-500

Payment Terms : T/T, Western Union,Paypal, L/C

Supply Ability : 100pcs/day

Delivery Time : 10-30days

Packaging Details : Carton box. Carton size: 43*43*21cm

Product Name : 22kW ev charging station

Cable Length : 5M or customized

Rated Current : 32A

Rated Power : 22kW

Rated Voltage : 480V

load manufacturer : dynamic load manufacturer

Charging Control : Plug and Play or RFID card

Connector Type : IEC62196 Type 2

Contact Now

7kW 22kW EV Charging Station with Dynamic Load Balance OCPP JSON1.6

Power Specification

Type B DC 6mA + 30mA AC leakage protector

Various startup modes,RFID card,APP,plug in and charge.

Load balancing management and solar matching function.

Saving on electricity bills by scheduling off-peak charging.

The Hierarchical maintenance design makes the maintenance and replacement much easier.

Compliant with OCPP 1.6 JSON and compatible with most of the charging network platforms in the European and UK market.

Over current, over voltage and short circuit protection, etc. make charging much safer.

JSON1.6 OCPP AC EV Charging Stations 7kW 22kw Home Charger

Protection

Rated Power	7.4kw,11kw,22kw
Type of connection	1P+N+PE,3P+N+PE,6-10mm2
Nominal Supply	230 VAC±15%,400VAC±15%
AC input frequency	50Hz/60Hz
Adjustable current	6A-32A Variable(Via APP)
Over Current protection	40A Supply(external MCB)
RCD protection	Built-in Type B RCD DC 6 mA/AC 30 mA (Industrial-grade protection
Standby Power Consumption Integrated protections	<8W
Connectivity	Bluetooth/WiFi/Ethernet/4G Optional/RS485/CAN Control charging with the LINCHR APP Built-in RFID reader,OCPP1.6
Solar Compatibility	EO,EO+,and Fast charging modes
Load Balancing Installation network	Up to 32 units can be connected
Supply Cable Entry	TN, IT, and TT
Housing material/Enclosure	O18mm-O24mm hole drilled at site through top and bottom of enclosure
Mounting	Wall-mounting,pedestal mounting

JSON1.6 OCPP AC EV Charging Stations 7kW 22kw Home Charger

Product Tags:

22kw home charger

7kW AC EV Charging Stations

JSON1.6 OCPP charging station

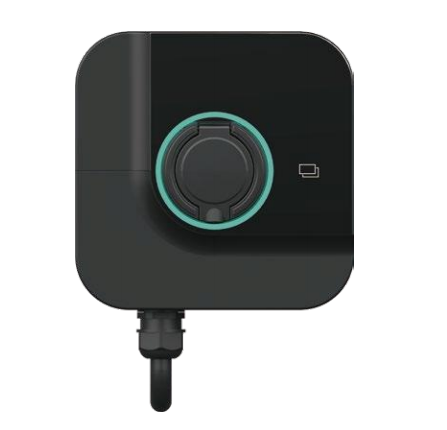

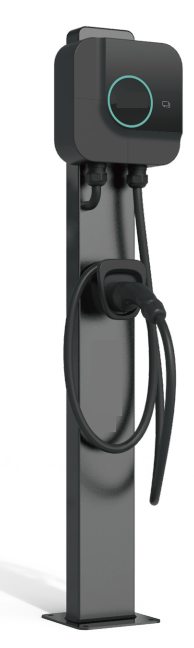

JSON1.6 OCPP AC EV Charging Stations 7kW 22kw Home Charger Images
